Apache SkyWalking introduced TraceQL support in version 10.4.0, implementing Grafana Tempo’s HTTP query APIs so that Grafana can query and visualize traces stored in SkyWalking without any additional plugins. This means you can now use the familiar Grafana Tempo data source to search, filter, and drill into both SkyWalking native traces and Zipkin-compatible traces — all served by your existing SkyWalking OAP server.

Architecture Overview

┌────────────────────┐         Tempo HTTP API           ┌─────────────────────────────┐
│                    │  ──── /skywalking/api/search ──► │  SkyWalking Native Backend  │
│      Grafana       │                                  │  (Query Traces V2 API)      │
│  (Tempo Data Src)  │                                  ├─────────────────────────────┤
│                    │  ──── /zipkin/api/search ──────► │  Zipkin-Compatible Backend  │
└────────────────────┘                                  └──────────┬──────────────────┘
                                                                   │
                                                        ┌──────────▼──────────────────┐
                                                        │    SkyWalking OAP Server    │
                                                        │  ┌───────────────────────┐  │
                                                        │  │   TraceQL Service     │  │
                                                        │  │  (port 3200)          │  │
                                                        │  └───────────────────────┘  │
                                                        │  ┌───────────────────────┐  │
                                                        │  │  Storage (BanyanDB /  │  │
                                                        │  │  Elasticsearch / …)   │  │
                                                        │  └───────────────────────┘  │
                                                        └─────────────────────────────┘

The TraceQL Service sits inside the OAP server and exposes the Tempo-compatible HTTP API on port 3200 (default). It converts traces from their native format into Tempo’s format, where the trace detail part (Trace message) reuses OTLP Trace definitions.

Limitations and Supported TraceQL Features

TraceQL is a rich query language, but SkyWalking currently implements a practical subset. The following features are supported:

The following features are not yet supported:

• Spanset logical operations ({...} AND {...}, {...} OR {...})
• Pipeline operations (| operator)
• Aggregate functions (count(), avg(), max(), min(), sum())
• Regular expression matching (=~, !~)
• event and link scopes
• kind intrinsic field
• Streaming mode (must be disabled in the Grafana Tempo data source settings)

Important: SkyWalking native trace support in TraceQL is based on the Query Traces V2 API. Currently, only BanyanDB storage implements this API. Other storage backends (e.g., Elasticsearch, MySQL, PostgreSQL) do not support SkyWalking native trace queries via TraceQL. Zipkin-compatible traces are not subject to this restriction.

Trace Format Conversion

Since the trace detail part of Tempo’s format reuses OTLP Trace definitions, the conversion descriptions below refer to OTLP field names (e.g., span kind, status code).

SkyWalking Native Trace

Trace ID Encoding

SkyWalking native trace IDs are arbitrary strings (e.g., 2a2e04e8d1114b14925c04a6321ca26c.38.17739924187687539), while Grafana Tempo requires pure hex-encoded trace IDs. The TraceQL Service encodes each UTF-8 byte of the original trace ID as two lowercase hex characters:

Original:  2a2e04e8d1114b14925c04a6321ca26c.38.17739924187687539
Encoded:   32613265303465386431313134623134393235633034613633323163613236632e33382e3137373339393234313837363837353339

This encoded hex trace ID is what appears in all API responses and in Grafana. When you click a trace ID in Grafana, the TraceQL Service automatically decodes it back to the original SkyWalking trace ID for the internal query.

Span Kind Mapping

Status Mapping

SpanAttachedEvents

SkyWalking SpanAttachedEvents are converted to OTLP span events, with tags mapped as string attributes and summary mapped as numeric attributes (serialized as strings).

Zipkin Trace

Span Kind Mapping

Status Mapping

1. If the otel.status_code tag is present, it is used directly.
2. Otherwise, if the error tag equals true, the status is STATUS_CODE_ERROR.
3. If neither tag is present, the status defaults to STATUS_CODE_UNSET.

Endpoint and Annotation Mapping

Zipkin endpoint fields are mapped to OTLP attributes (e.g., localEndpoint.ipv4 → net.host.ip), and Zipkin annotations are converted to OTLP span events.

For the full conversion details, see the TraceQL Service documentation.

How to Enable TraceQL

Step 1: Enable the TraceQL Module

By default, the TraceQL module is disabled (selector: ${SW_TRACEQL:-}). To enable it, set the selector to default:

# In application.yml
traceQL:
  selector: ${SW_TRACEQL:default}
  default:
    enableDatasourceSkywalking: ${SW_TRACEQL_ENABLE_DATASOURCE_SKYWALKING:true}
    enableDatasourceZipkin: ${SW_TRACEQL_ENABLE_DATASOURCE_ZIPKIN:true}

Or via environment variables:

export SW_TRACEQL=default
export SW_TRACEQL_ENABLE_DATASOURCE_SKYWALKING=true
export SW_TRACEQL_ENABLE_DATASOURCE_ZIPKIN=true

Step 2: Enable the Zipkin Receiver (for Zipkin traces only)

If you want to query Zipkin traces, you also need to enable the Zipkin receiver so that SkyWalking can ingest Zipkin trace data:

# In application.yml
receiver-zipkin:
  selector: ${SW_RECEIVER_ZIPKIN:default}
  default:
    searchableTracesTags: ${SW_ZIPKIN_SEARCHABLE_TAG_KEYS:http.method}
    sampleRate: ${SW_ZIPKIN_SAMPLE_RATE:10000}
    restHost: ${SW_RECEIVER_ZIPKIN_REST_HOST:0.0.0.0}
    restPort: ${SW_RECEIVER_ZIPKIN_REST_PORT:9411}

Or via environment variable:

export SW_RECEIVER_ZIPKIN=default

Full Configuration Reference

For the complete list of all configuration options and their default values, see the Configuration section of the TraceQL Service documentation.

Configuring Grafana Tempo Data Source

Prerequisite: Grafana 12 or later is required.

Each trace backend (SkyWalking native / Zipkin) needs its own Tempo data source in Grafana, because each is served under a different context path.

Context Paths

The two backends are served under separate context paths on the same port:

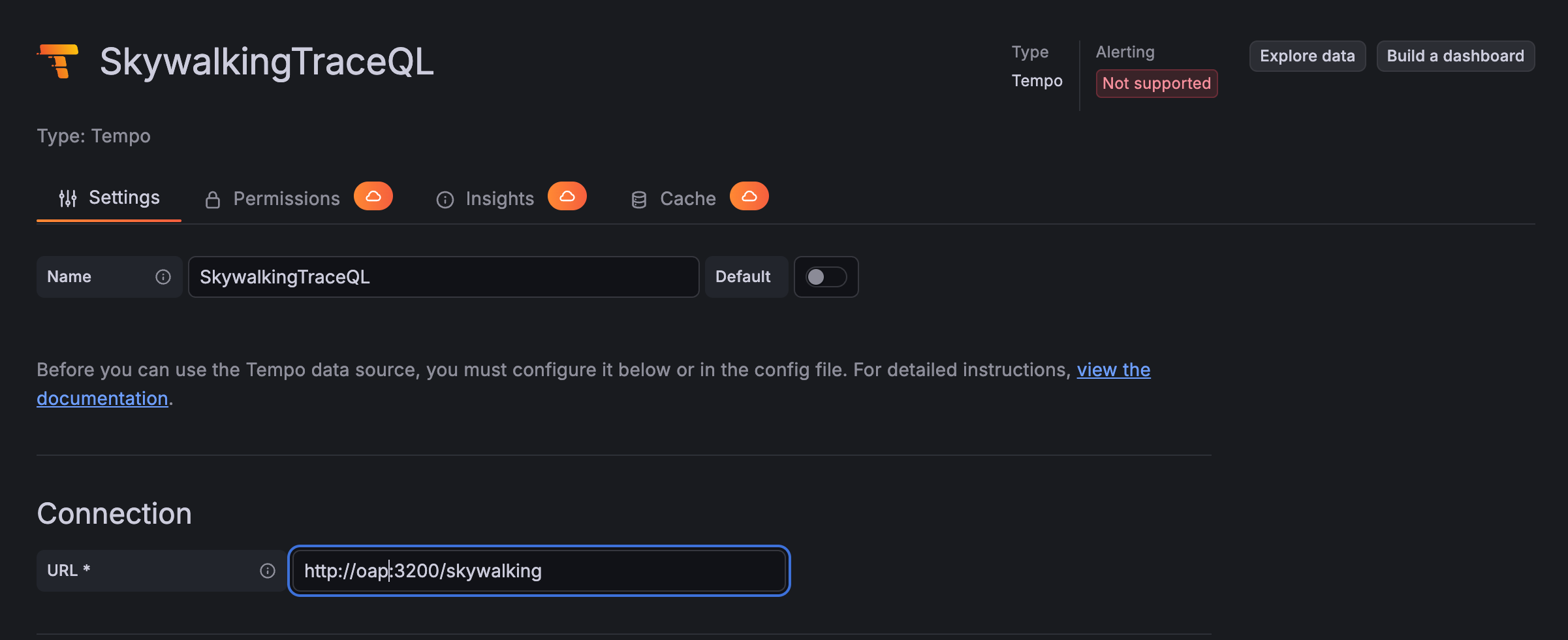

Setting Up the SkyWalking Data Source

1. In Grafana, go to Configuration → Data Sources → Add data source.
2. Choose Tempo.
3. Set the URL to http://<oap-host>:3200/skywalking.

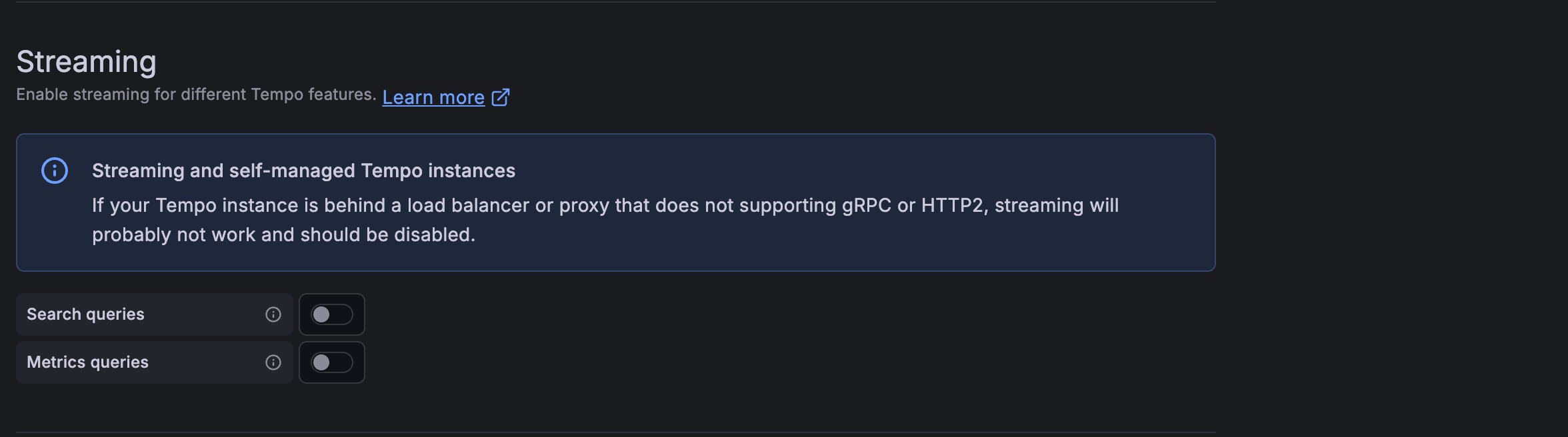

4. Disable the Streaming option (SkyWalking does not support streaming mode).

5. Save and test the data source.

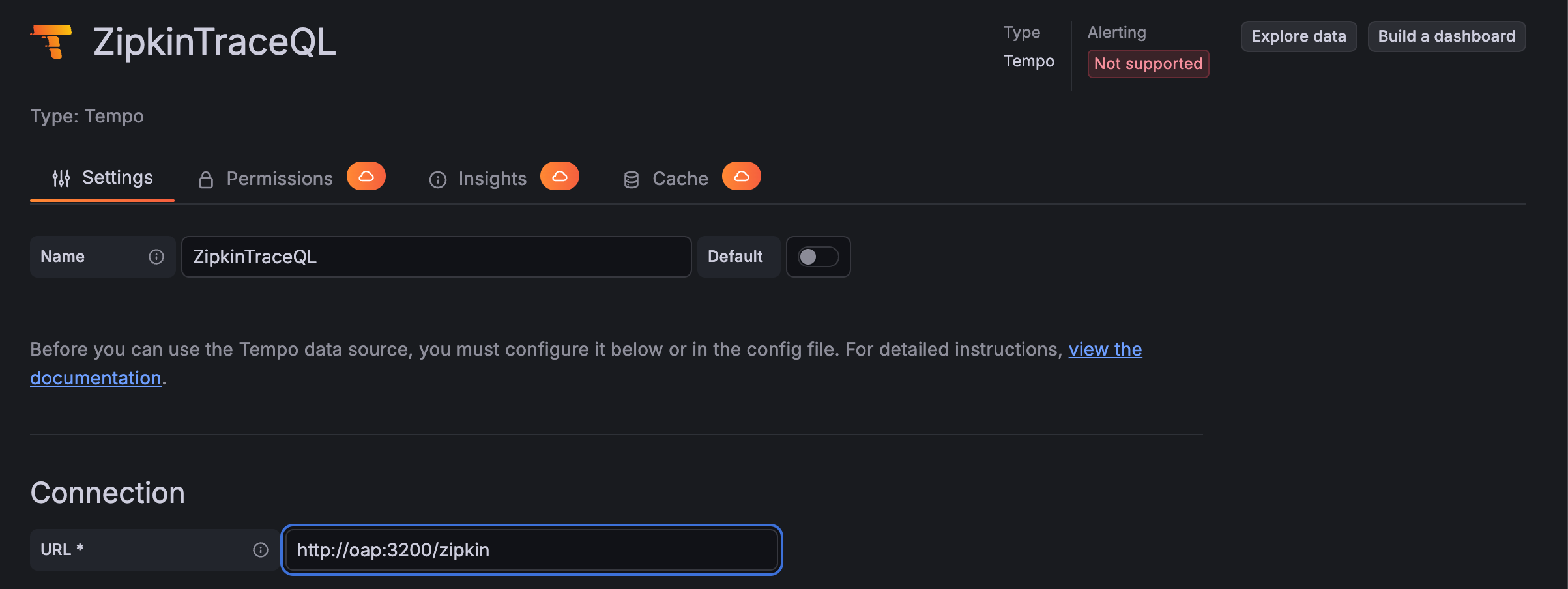

Setting Up the Zipkin Data Source

Same as above, but set the URL to http://<oap-host>:3200/zipkin.

Configuring Trace List Result Tags

When you search for traces in Grafana, the trace list panel shows a summary of each trace. The tracesListResultTags configuration controls which span tags are included in the search result and displayed as columns in the trace list.

Note that service.name and span.kind are always included regardless of this setting.

These tags appear as attribute columns in the Grafana Tempo trace search results, making it easier to identify and group traces at a glance:

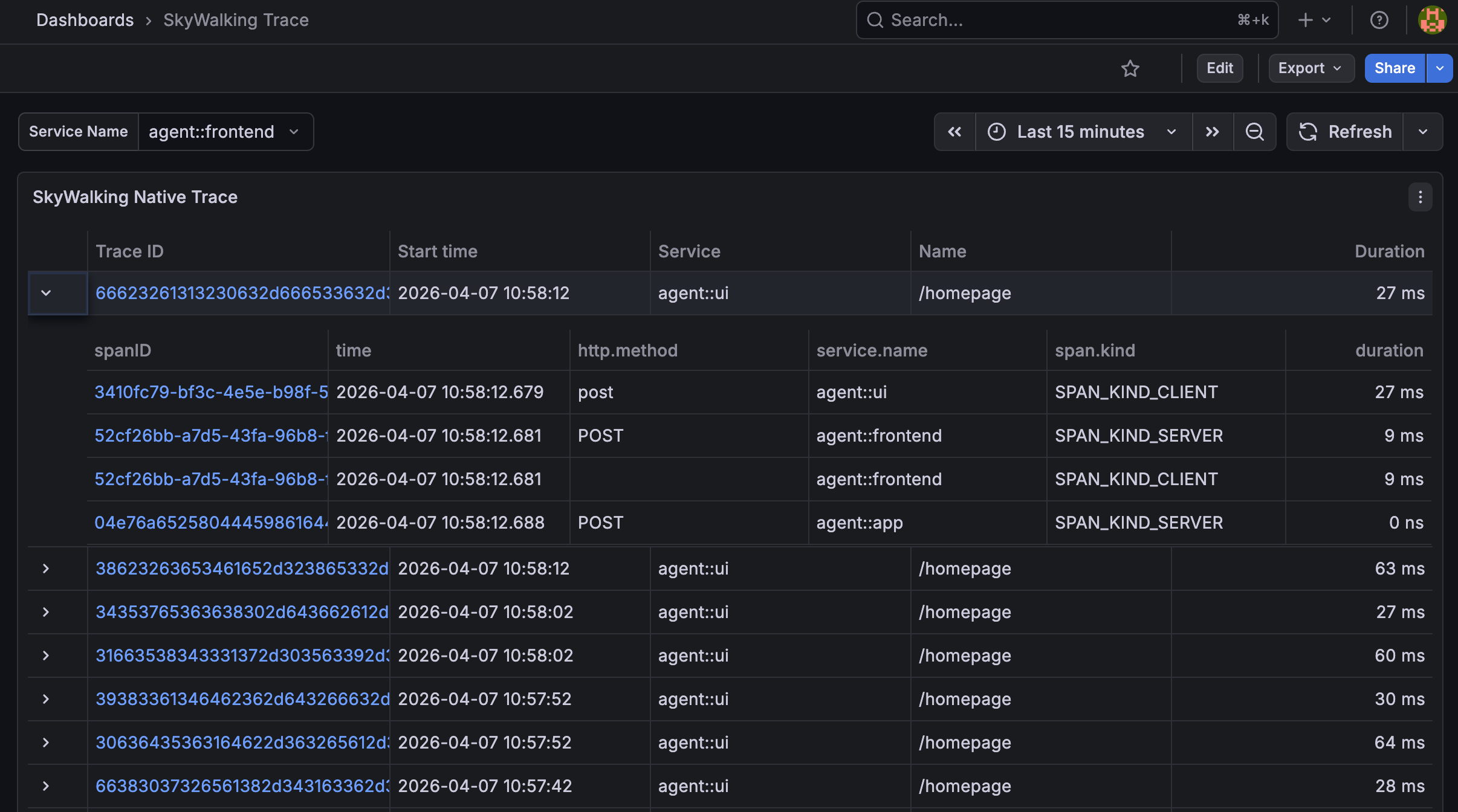

SkyWalking native trace list:

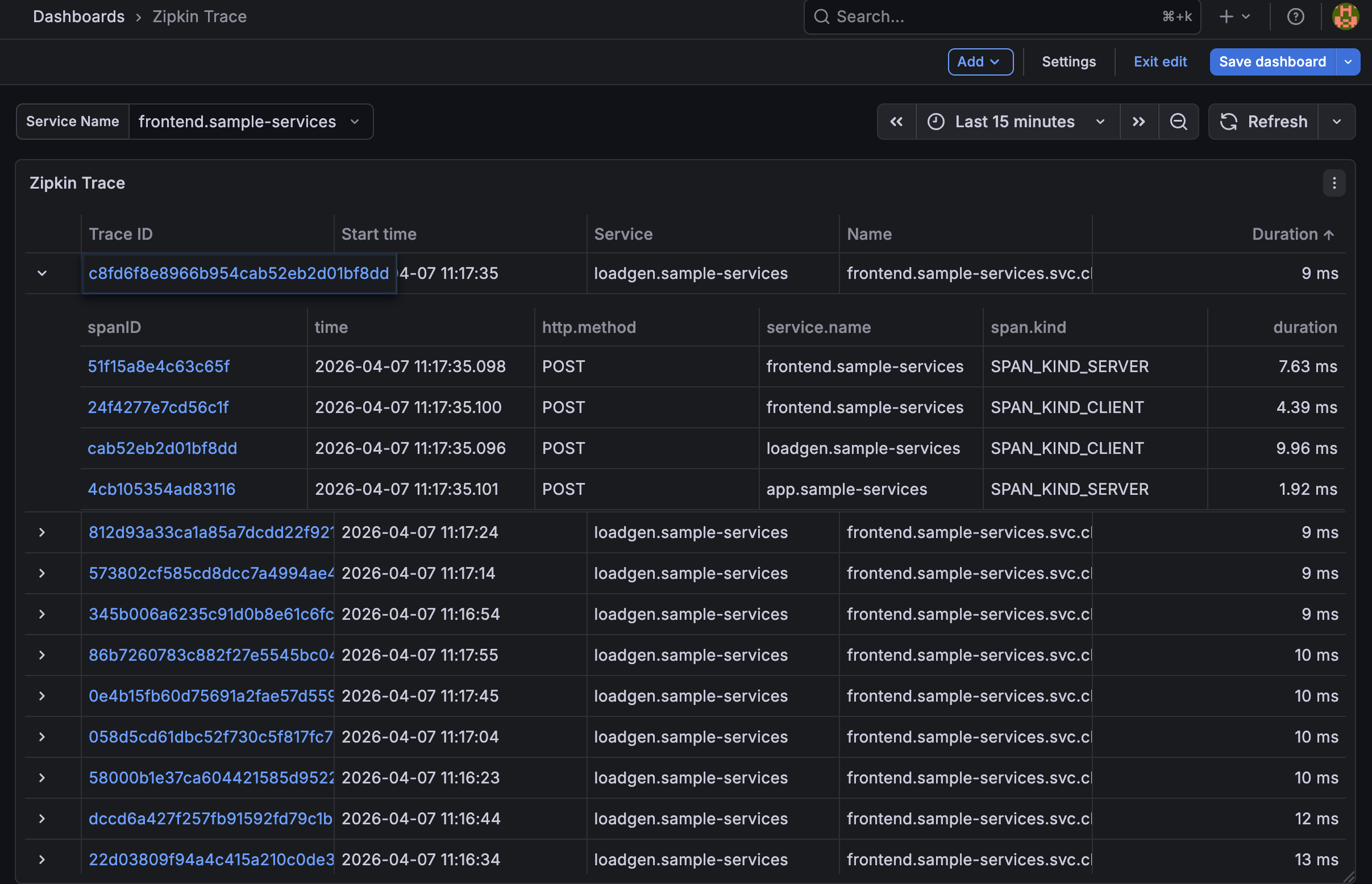

Zipkin trace list:

You can customize these tags based on your application’s instrumentation. For example, if your services heavily use messaging, you might add mq.destination or messaging.system to the list.

Building a Trace Dashboard in Grafana

SkyWalking Native Trace Dashboard

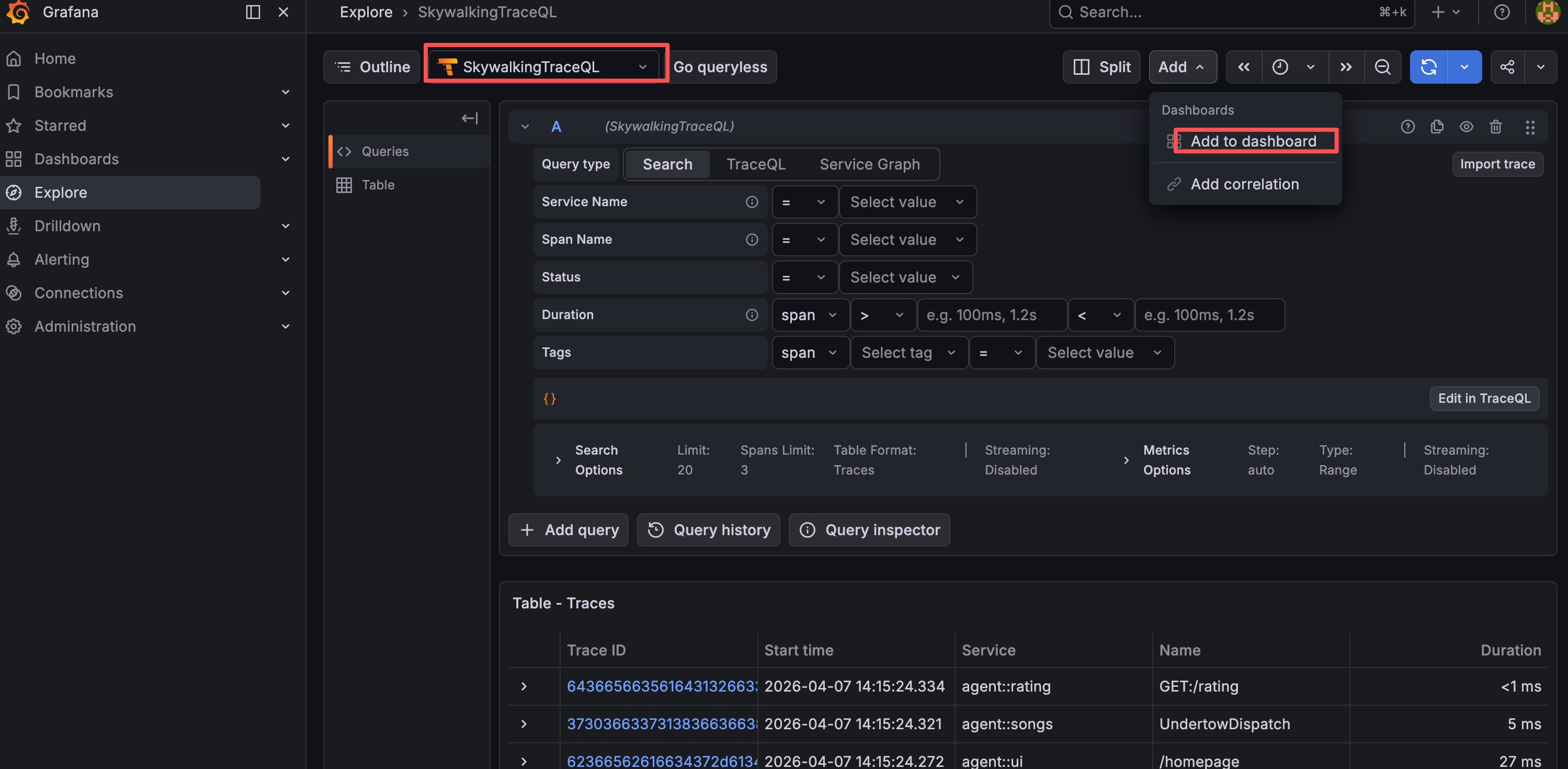

Step 1: Explore and Save

1. Go to the Explore page in Grafana.
2. Select the Tempo data source you configured for SkyWalking (e.g., SkyWalkingTraceQL).
3. Run a test query, then click Add to dashboard and save it as SkyWalking Trace.

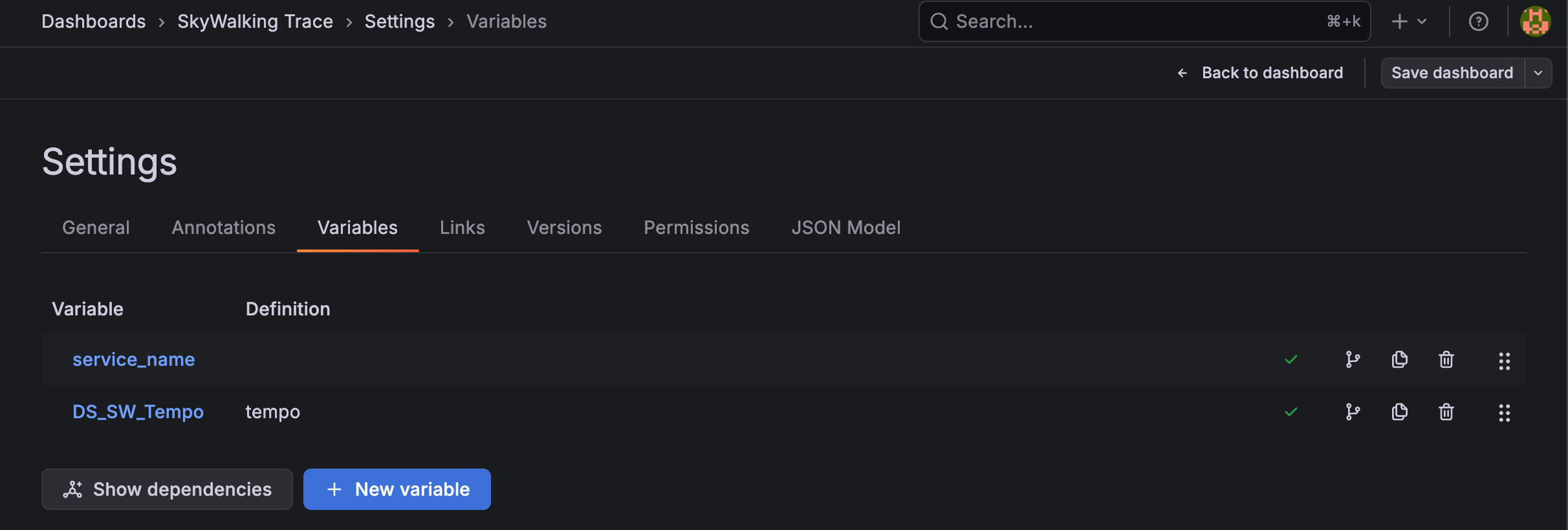

Step 2: Configure Variables

Add dashboard variables so users can filter traces dynamically (e.g., by service name):

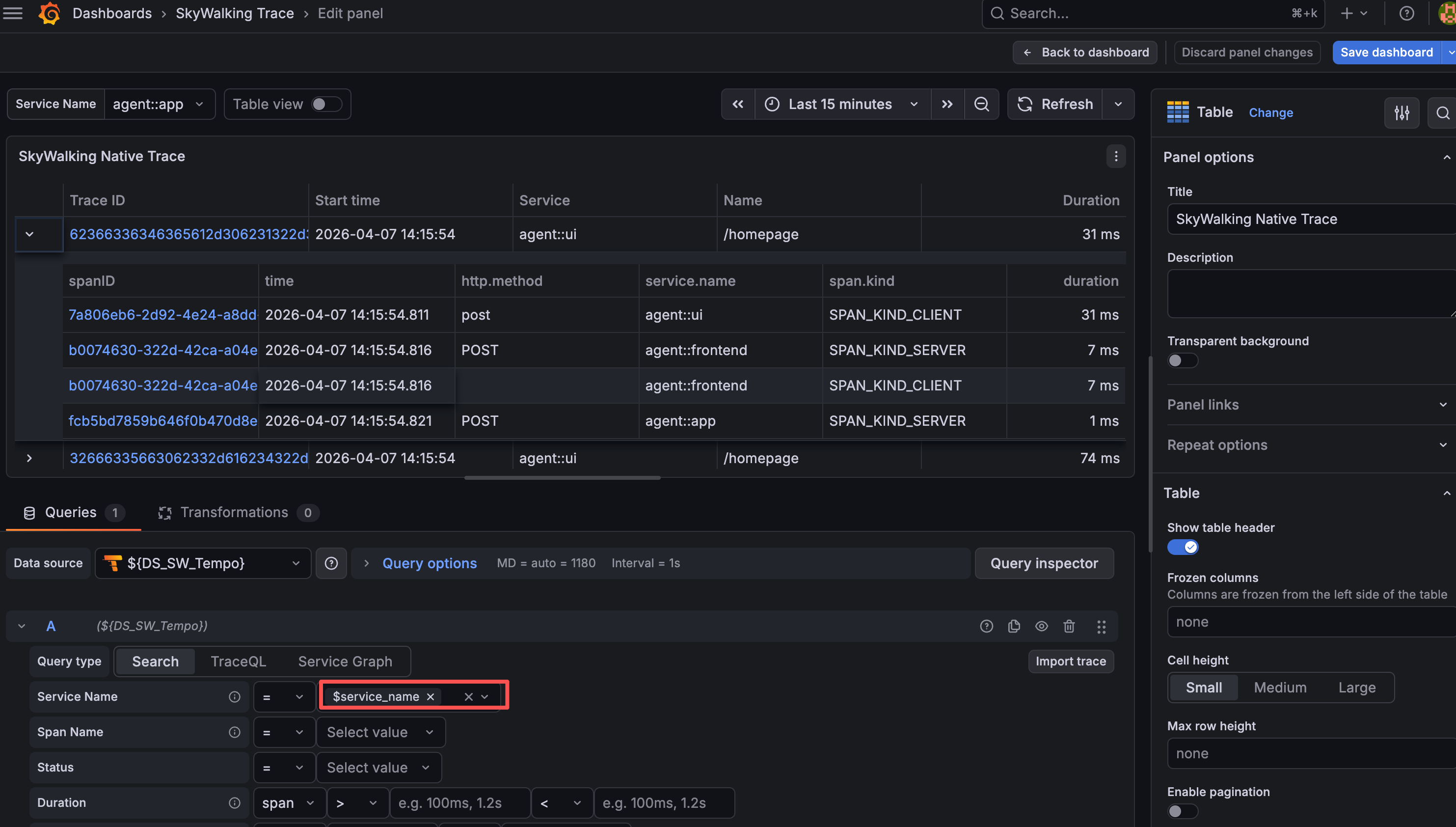

Step 3: Add a Trace Panel

1. Choose a Table chart (or edit the panel you saved).
2. Set Query type to Search.
3. Set the Service Name query condition to the variable $Service.
4. Add other query conditions as needed (e.g., duration, span name, tags).
5. Test and save.

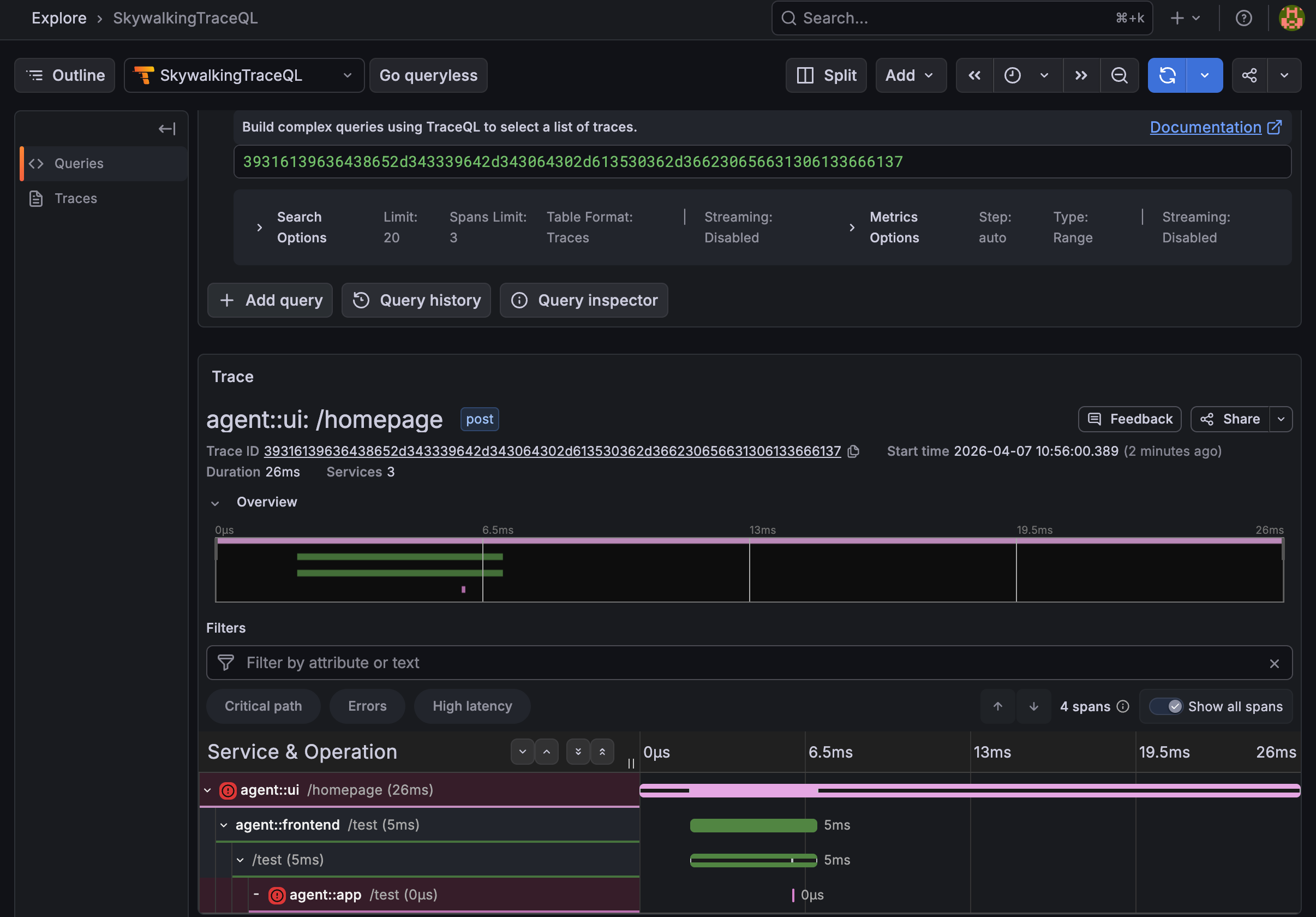

Step 4: View Trace Details

Click any trace ID in the trace panel to jump to the Explore page showing the full trace waterfall view with all spans, tags, and events:

Zipkin Trace Dashboard

The setup for Zipkin traces is identical to SkyWalking native traces — just use the Zipkin Tempo data source you configured (e.g., ZipkinTraceQL).

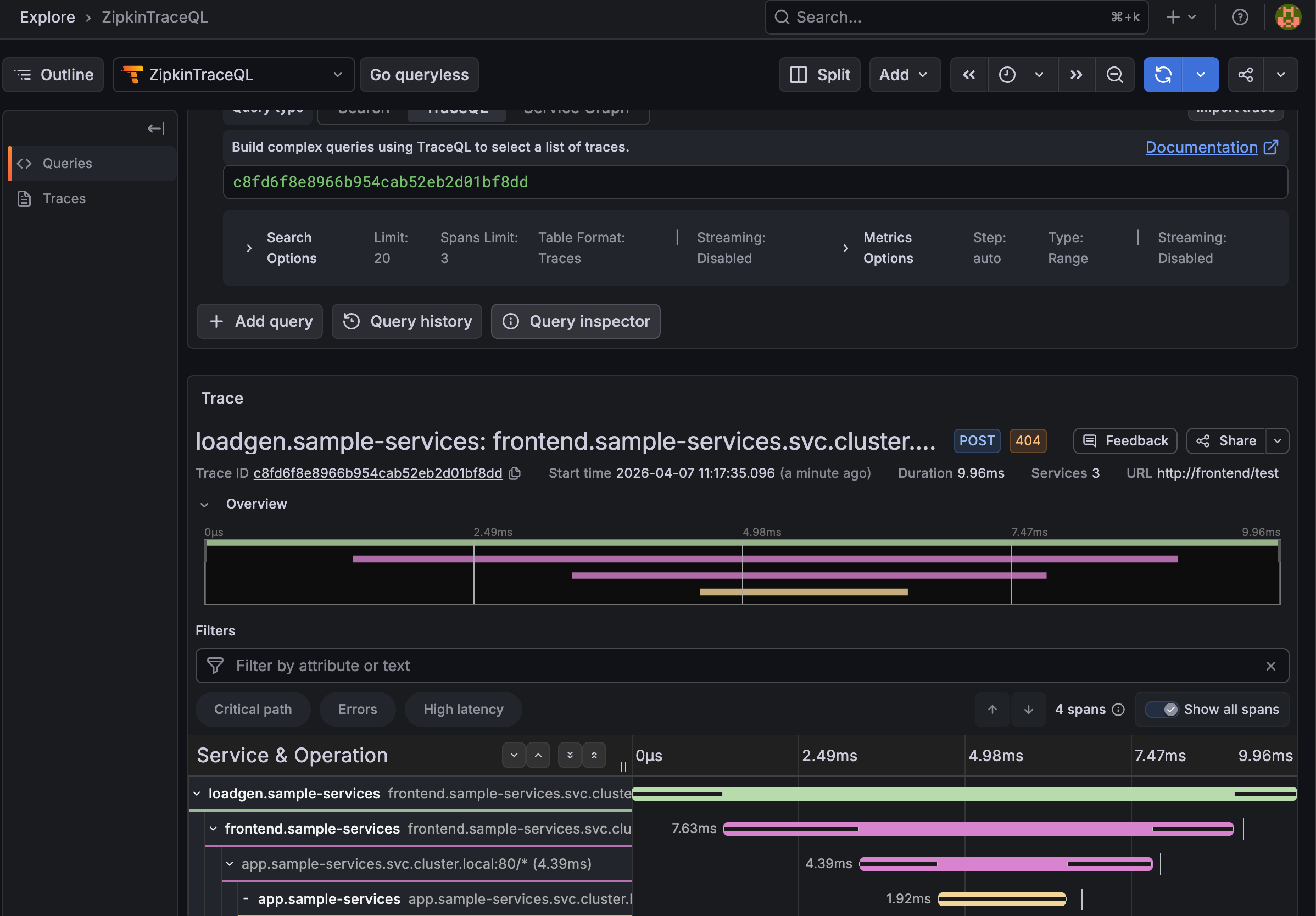

Zipkin trace detail view:

Summary

With TraceQL support in SkyWalking 10.4.0, you can now leverage Grafana’s powerful Tempo data source to query and visualize both SkyWalking native traces and Zipkin-compatible traces. The key points to remember:

1. Enable the TraceQL module by setting SW_TRACEQL=default and enabling the desired backends.
2. Configure separate Tempo data sources in Grafana for each backend (/skywalking and /zipkin).
3. Disable the Streaming option in the Grafana Tempo data source settings.
4. Customize result tags via SW_TRACEQL_SKYWALKING_TRACES_LIST_RESULT_TAGS and SW_TRACEQL_ZIPKIN_TRACES_LIST_RESULT_TAGS to control what’s shown in search results.
5. SkyWalking native trace queries require BanyanDB storage (Zipkin traces work with all storage backends).

For the complete API reference and conversion details, see the TraceQL Service documentation. For Grafana integration details, see Use Grafana As The UI.
